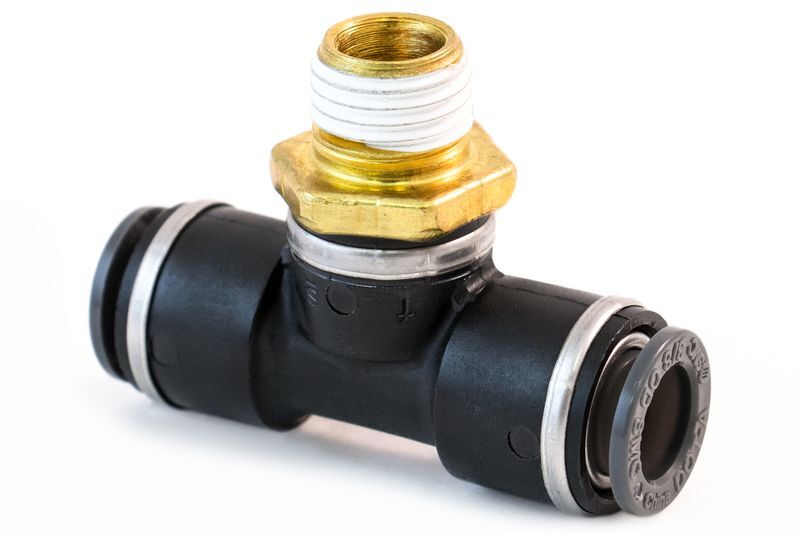

Male Branch Swivel Tee Fitting Tube (Sealant Applied) 3/8" X 1/4"
SKU: US91-99093
Male Branch Swivel Tee Fitting Tube (Sealant Applied) 3/8" X 1/4"
Tramec Sloan
Brass and Composite Push-to-Connect air brake fittings are designed to resist mechanical pull-out are easy to assemble and disassemble over and over again. They are designed for use with SAE J844 air brake tubing. Max working pressure is 145 PSI with a temperature range of -40 F/C to 225 F. Tramec Sloan Push-to-Connect fittings meet DOT FMVSS 571.106, SAE J1131, J2494-1, and J2494-3 standards. From under the hood, to the back of the trailer...We've got you covered!
Brass and Composite Push-to-Connect air brake fittings are designed to resist mechanical pull-out are easy to assemble and disassemble over and over again. They are designed for use with SAE J844 air brake tubing. Max working pressure is 145 PSI with a temperature range of -40 F/C to 225 F. Tramec Sloan Push-to-Connect fittings meet DOT FMVSS 571.106, SAE J1131, J2494-1, and J2494-3 standards. From under the hood, to the back of the trailer...We've got you covered!
- Designed to Resist Mechanical Pull-Out
- Easy to Assemble and Disassemble Over and Over Again
- Swivel is for Installation Purposes Only
- Use with SAE J844 Nylon Air Brake Tubing
- WORKING PRESSURE: Up to 145 PSI
- TEMPERATURE RANGE: -40°F to 140°F (-40°C to 60°C)
Body Material
Composite
Configuration
Branch Tee
Fitting Type
DOT Composite PTC
PIPE 1
1/4 IN
Tube 1
3/8 IN
Tube 2
3/8 IN
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, International MV, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, MV, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, MD, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
