Maxxima RGB Rigid Strip 24”, 7 Colors 75 LEDs
SKU: M84472RGB
Maxxima RGB Rigid Strip 24”, 7 Colors 75 LEDs

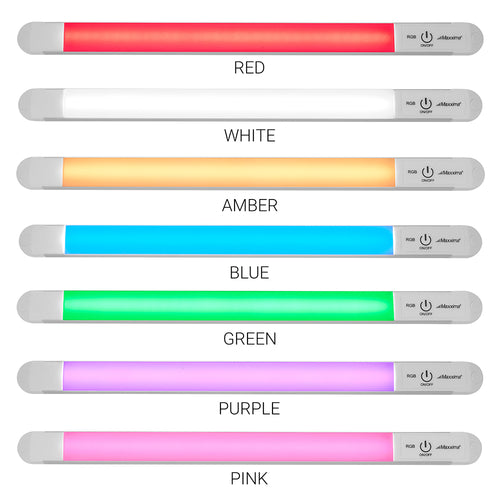

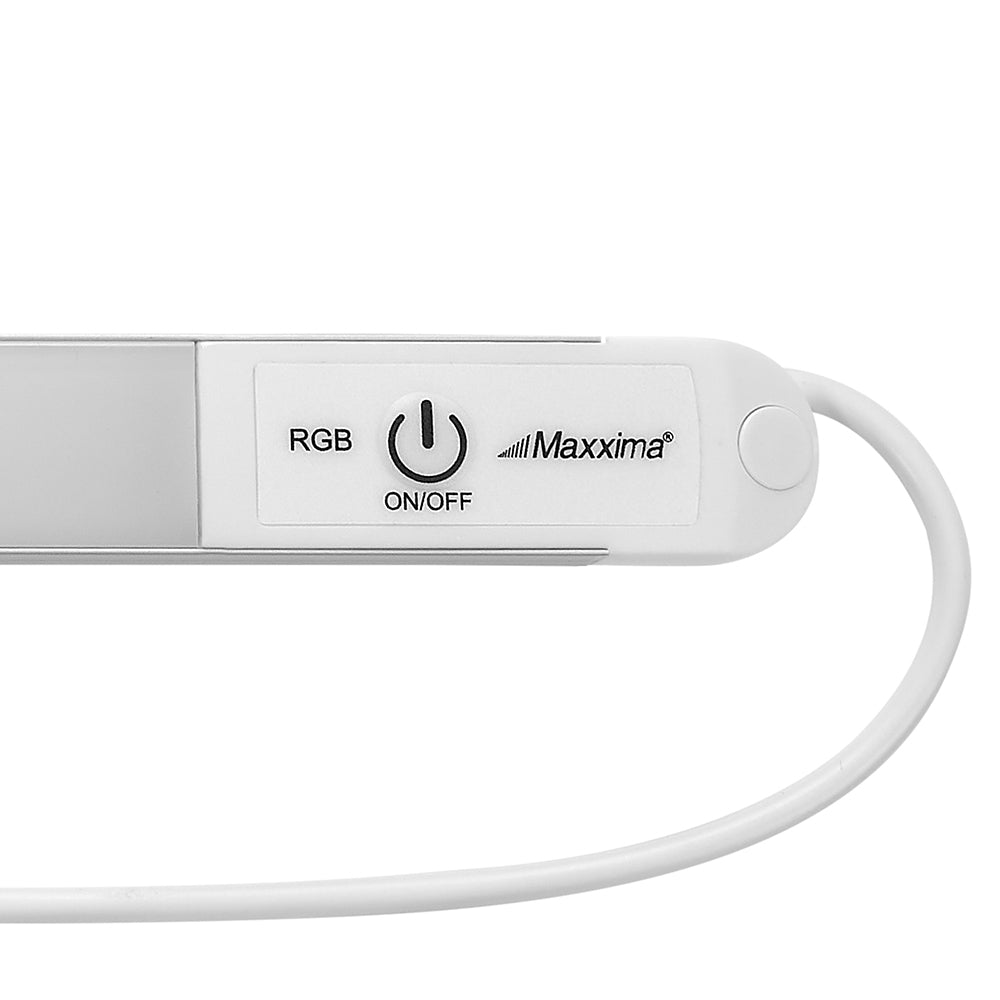

The M84472RGB is a 24-inch rigid LED strip offering multi-color RGB functionality with 7 user-selectable colors to choose from (red, white, blue, amber, green, purple, and pink). The integrated switch doubles as both power and color switch allowing the user to cycle through and select the desired color by just tapping the switch. It features 75 RGB LEDs in a low-profile durable aluminum body with a polycarbonate lens Designed for custom vehicle lighting and accent applications, it offers multi-color RGB functionality in a compact, low-profile design. Mounts easily with two pre-drilled ⅛” holes spaced 25.3” center to center, and includes mounting screws for quick installation. The strip operates on 12.8V DC, draws just 0.8A max, and uses a simple 2-wire termination with 11” leads for flexible hookup. Rated IP53 for dust and moisture resistance, it performs reliably across a wide temperature range and is backed by a 5-year warranty.
FEATURES & BENEFITS
- RGB Multi-Color Function
- 7 Selectable Colors: Red, White, Blue, Amber, Green, Purple, Pink
- 2 Mounting Holes ⅛” in Diameter
- 25.3” Center to Center
- Mounting Screws Included
- 2 Wire Termination
- Aluminum Body
- Polycarbonate Lens
- IP 53 Rated
- 5 Year Warranty
SPECIFICATIONS
- LEDs: 75
- LED Color: RGB
- Dimensions: 25.7” x 0.9” wide x 0.4” deep
- Voltage: 12.8
- Amp Draw: 1.4A Max
- Lens Material: Polycarbonate
- Body Material: Aluminum
- Operating Temperature: -40 C to + 50 C
- IP Rating: 53
- Termination: 2 Wire 11”
- Wire Gauge: 22 AWG
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, MD, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
