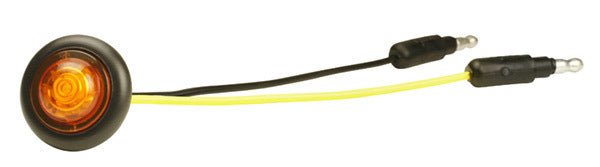

MicroNova® Dot LED Clearance Marker Lights Amber
SKU: 49333
MicroNova® Dot LED Clearance Marker Lights Amber
The MicroNova® Dot provides a bright pinpoint of light exactly where it is needed. The mounting bracket has two drain holes on either side of the lamp, so water will drain away from the lamp itself. The new design of the light is thinner and compact, so you can mount it using less mounting surface. Yet it uses the same vehicle hole pattern, existing vehicles can be retrofitted easily. The mounting bracket's durable polycarbonate material ensures years of effective use, and it includes slotted mounting holes for even more flexibility when mounting the bracket on the vehicle.
Technical specifications
Technical specifications
- Color: Amber
- Mounting Type: Grommet
- Connection Type: Standard .180" Male Bullet
- Lens Color: Amber
- Amperage: .05A

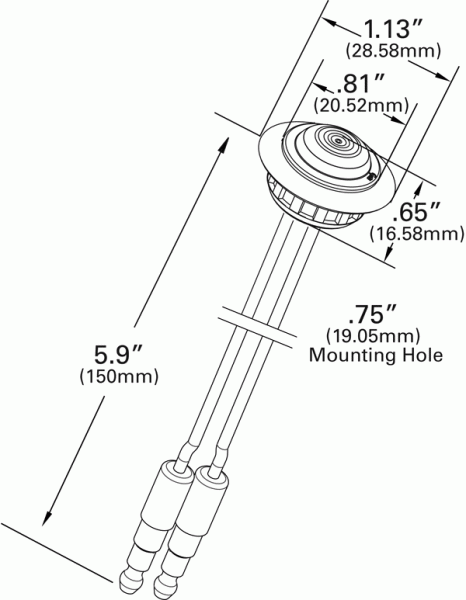

- Size: 1"
- Functions: P2/PC
- Mtg Hole: .75"
- Regulations: FMVSS 108
- VMRS: 034-004-253
- Material: Acrylic Lens, PVC Grommet
- Available in PC and P2 versions with .180 bullet or Deutsch® connectors
- Sleek aerodynamic styling extends less than 3/8" from mounted surface
- No fasteners required
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
GARANTÍA DE UN AÑO / NO APLICA SI EL PRODUCTO SE DAÑA POR UNA MALA INTALACION / NO APLICA PARA PARTES ELECTRICAS.
