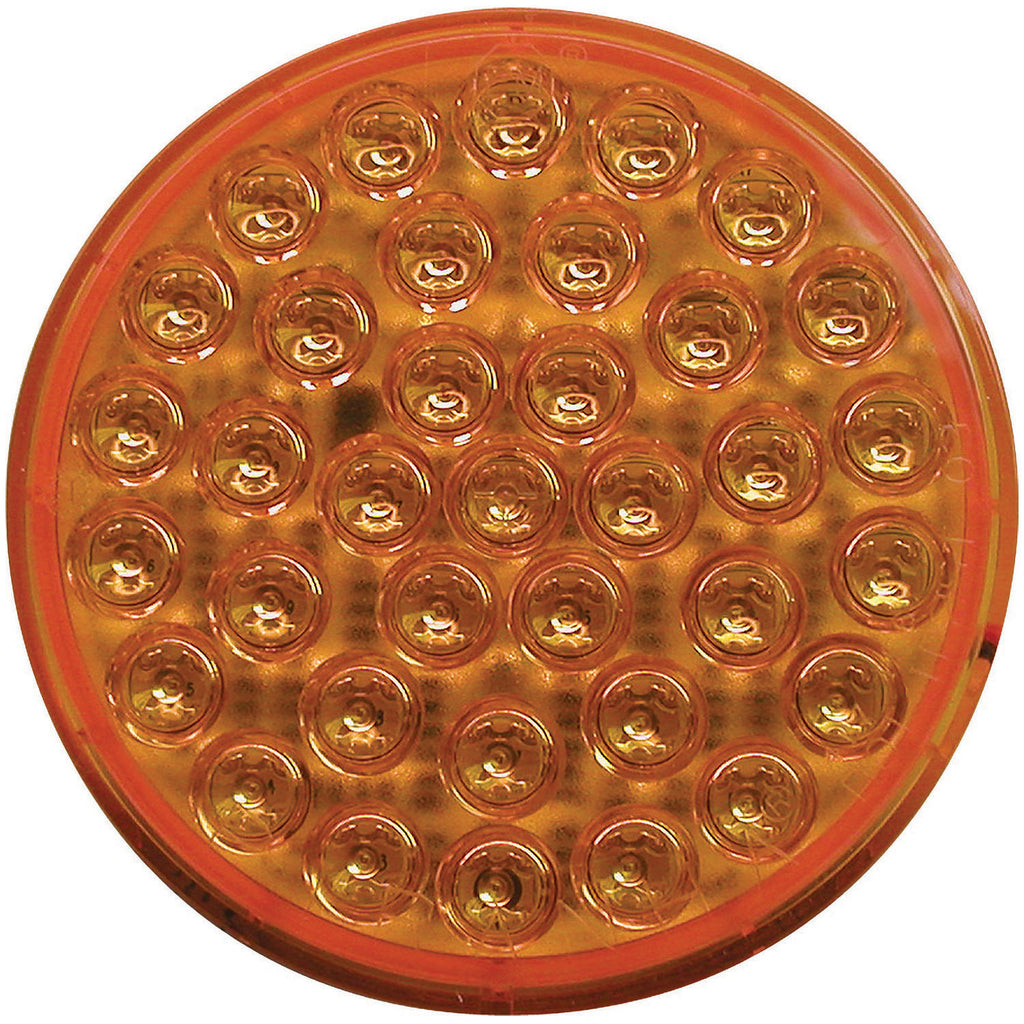

Peterson 36-Diode 4 inch Round Strobe & Rear Turn Signal w/ Sync; Amber
SKU: 866SA-2
Peterson 36-Diode 4 inch Round Strobe & Rear Turn Signal w/ Sync; Amber
Out Of Stock
- Strobe & Rear Turn Signal w/ Sync
- Two- or four-lamp system functions as both alternating strobes and DOT-compliant rear turn signals.
- Activating turn signal automatically overrides strobe function.
- Sync wire technology allows 2 lamps to communicate with each other without an external strobe controller.
- Requires no external strobe controller. (Requires standard vehicle flasher for turn function.)
- Multi-volt design compatible with 12V & 24V systems.
- 30 degree angle, 3-wire, silicone-sealed twin AMP receptacles integrated into housing.
- Meets SAE J595 Class 2 specifications.
- Requires both 3-wire AMP plug and single wire sync plug for installation.
Bulb Technology | LED

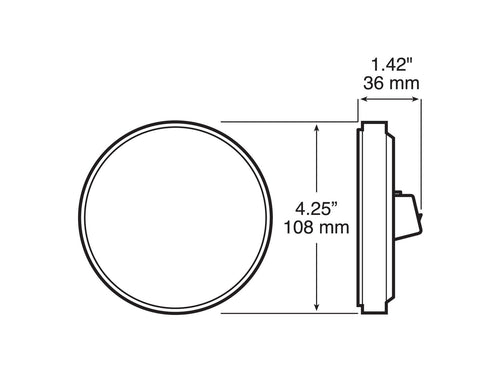

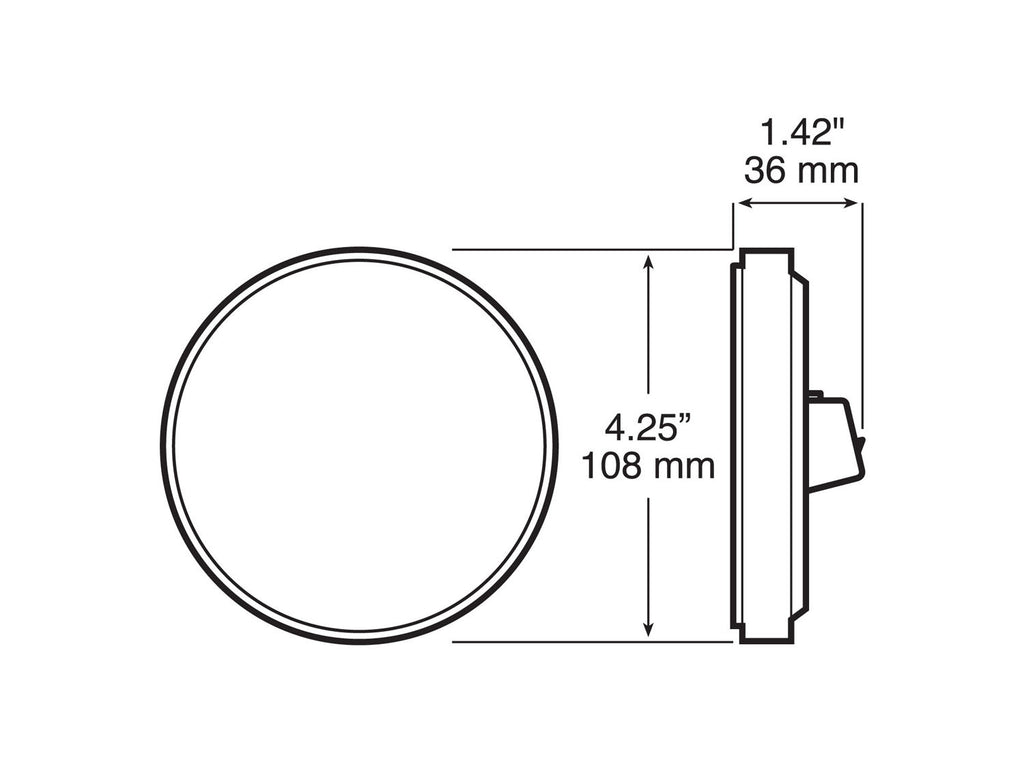

Length | 4.25 Inch
Minimum Voltage | 9 Volts
Diameter | 4.25 Inch
Voltage | 12V / 24V
Maximum Voltage | 32 Volts
Width | 1.42 Inch
Flash Type | Triple
Container Type | Poly Bag
Height | 4.25 Inch
Integral Reflex | No
Mounting Type | Grommet
Bulb/Diode Count | 36
Lens Color | Amber
Programmable | No
Shape | Round
termination | AMP
Multi-Volt | Yes
Light Color | Amber
SAE Class | J595 Class 2
Synchronizable | Yes
Length | 4.25 Inch
Minimum Voltage | 9 Volts
Diameter | 4.25 Inch
Voltage | 12V / 24V
Maximum Voltage | 32 Volts
Width | 1.42 Inch
Flash Type | Triple
Container Type | Poly Bag
Height | 4.25 Inch
Integral Reflex | No
Mounting Type | Grommet
Bulb/Diode Count | 36
Lens Color | Amber
Programmable | No
Shape | Round
termination | AMP
Multi-Volt | Yes
Light Color | Amber
SAE Class | J595 Class 2
Synchronizable | Yes
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, International MV, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, MV, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, MD, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
