Relay Valve (R-6) EM36140. LEV-3614,281865
SKU: US31-1038
Relay Valve (R-6) EM36140. LEV-3614,281865
Call for price
In Stock
The R-6 Relay Valve is used primarily on long wheelbase vehicles to apply and release rear axle service or parking brakes. The R-6 valve is a high capacity, fast response, straight relay valve. The crack pressure setting for these valves is 2 PSI. Upon signal pressure from the foot valve, it graduates, holds, or releases air pressure from the chambers to which it is connected.
- Relay Valve (R-6)

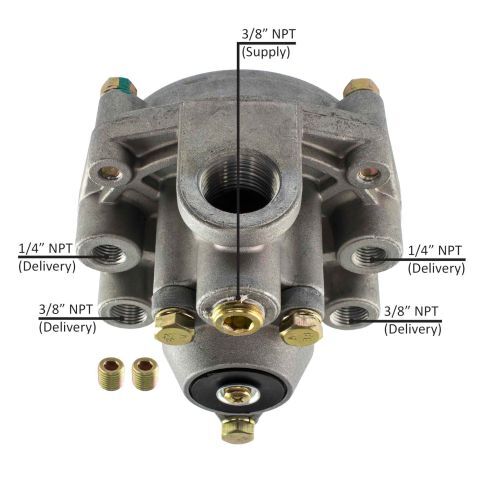

- Ports: 1/4 NPT Service, Emergency, 3/4 Supply, 3/8 & 1/4 Delivery
- Crack Pressure: 4.5 PSI
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
- Relay Valve
GARANTÍA DE UN AÑO / NO APLICA SI EL PRODUCTO SE DAÑA POR UNA MALA INTALACION / NO APLICA PARA PARTES ELECTRICAS.
