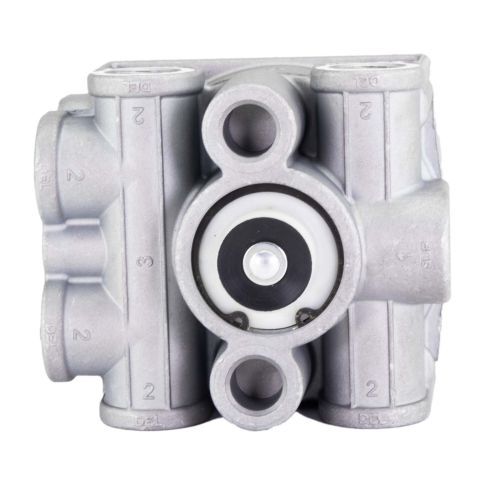

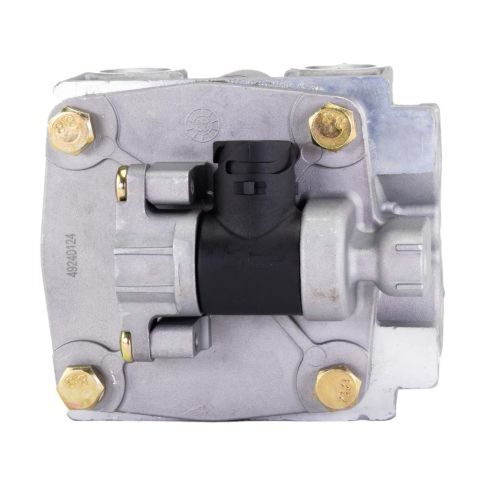

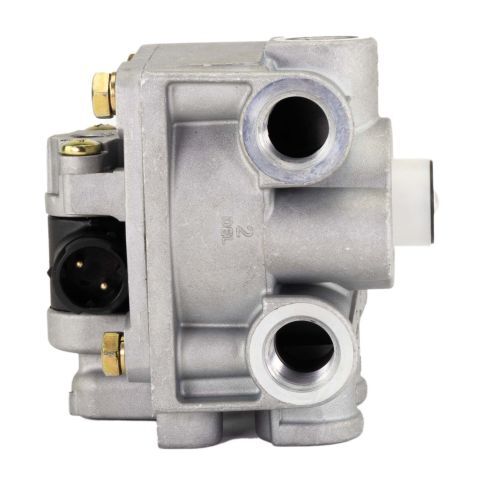

ABS Brake Valve (ATR-6 RELAY) | Multiple Use (5.5 psi)(12 volt)
SKU: US31-11158
ABS Brake Valve (ATR-6 RELAY) | Multiple Use (5.5 psi)(12 volt)
RELAY VALVE 5.5 PSI CRACK
MOUNTING: 3/8-16 UNC-2B (3X)
MOUNTING ORIENTATION (CW FROM FRONT FACE): 180°
CONNECTOR TYPE: 2-WAY CIRCULAR DIN (ISO 15170-1
TWIST-LOCK)
BODY CONFIGURATION: 1 SUP / 8 DEL (6H + 2V)
SUPPLY PORT 1: 1/2-14 NPT
INTERNAL SUPPLY PASSAGE TO COVER: YES
CONTROL PORT: 1/4-18 NPT
CONTROL PORT ORIENTATION (CW FROM FRONT FACE): 0°
DELIVERY PORT 1: 1/2”-14 NPT
DELIVERY PORT 2: 1/2”-14 NPT
DELIVERY PORT 3: 1/2”-14 NPT
DELIVERY PORT 4: 1/2”-14 NPT
DELIVERY PORT 5: CLOSED PORT
DELIVERY PORT 6: CLOSED PORT
DELIVERY PORT 7: CLOSED PORT
DELIVERY PORT 8: CLOSED PORT
EXHAUST PORT: DUST SHIELD
CRACK PRESSURE: 5.5 PSI
TMC WASHER: RV055
VOLTAGE (NOMINAL): 12 VOLTS
MAXIMUM OPERATING TEMPERATURE: 185 °F (85 °C)
MINIMUM OPERATING TEMPERATURE: -40 °F (-40 °C)
MOUNTING: 3/8-16 UNC-2B (3X)
MOUNTING ORIENTATION (CW FROM FRONT FACE): 180°
CONNECTOR TYPE: 2-WAY CIRCULAR DIN (ISO 15170-1
TWIST-LOCK)
BODY CONFIGURATION: 1 SUP / 8 DEL (6H + 2V)
SUPPLY PORT 1: 1/2-14 NPT
INTERNAL SUPPLY PASSAGE TO COVER: YES
CONTROL PORT: 1/4-18 NPT
CONTROL PORT ORIENTATION (CW FROM FRONT FACE): 0°
DELIVERY PORT 1: 1/2”-14 NPT
DELIVERY PORT 2: 1/2”-14 NPT
DELIVERY PORT 3: 1/2”-14 NPT
DELIVERY PORT 4: 1/2”-14 NPT
DELIVERY PORT 5: CLOSED PORT
DELIVERY PORT 6: CLOSED PORT
DELIVERY PORT 7: CLOSED PORT
DELIVERY PORT 8: CLOSED PORT
EXHAUST PORT: DUST SHIELD
CRACK PRESSURE: 5.5 PSI
TMC WASHER: RV055
VOLTAGE (NOMINAL): 12 VOLTS
MAXIMUM OPERATING TEMPERATURE: 185 °F (85 °C)
MINIMUM OPERATING TEMPERATURE: -40 °F (-40 °C)
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
