Features & Benefits

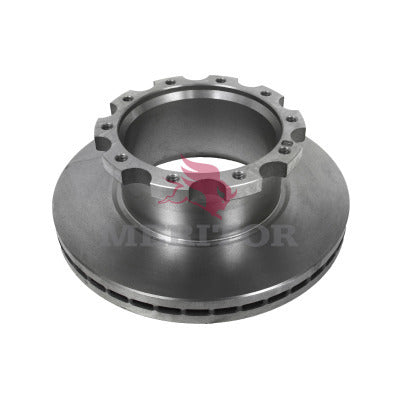

The leader in heavy duty braking solutions, Meritor’s air disc brake rotor is engineered with enhanced thermal properties for longer life and improved fade resistance. Its versatile and highly durable design also makes it suitable for a wide range of linehaul, transit, and vocational applications.
Product Attributes
- Manufactured from premium grade cast iron specially formulated to conduct heat more efficiently
- Innovative thermal dissipation technology generates lower peak temperatures for extended friction life
- Integrated cooling vanes promote airflow through the rotor and reduce its overall weight
- Complies with ECE R90 material and performance specifications
The leader in heavy duty braking solutions, Meritor’s air disc brake rotor is engineered with enhanced thermal properties for longer life and improved fade resistance. Its versatile and highly durable design also makes it suitable for a wide range of linehaul, transit, and vocational applications.
Product Attributes
Discard Thickness | 1.5 IN |
Nominal Thickness | 1.8 IN |
Overall Height | 5.9 IN |
Mounting Bolt Hole Quantity | 10 |
Center Hole Diameter | 8.7 IN |
Mounting Bolt Hole Circle Diameter | 9.8 IN |
Mounting Bolt Hole Diameter | 0.625196849756 IN |
Brake System | Bendix ADB22X |
Flange Thickness | 0.9 in |
OE Manufacturer | Bendix/Knorr |
Recommended Use | Bendix/Knorr ADB22X |
Rotor Shape | U-Shaped Rotor |
Unassigned_Outside Disc (inches) | 16.9 in |
Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, M2, M2 106 |
Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
Mack | CH, CHN, CV, CXN, Granite, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
