Maxxima 4" x 6" LED Head Lamp - Low Beam + Supplemental High Beam
SKU: MHLE-4X6LOHI
Maxxima 4" x 6" LED Head Lamp - Low Beam + Supplemental High Beam
Description

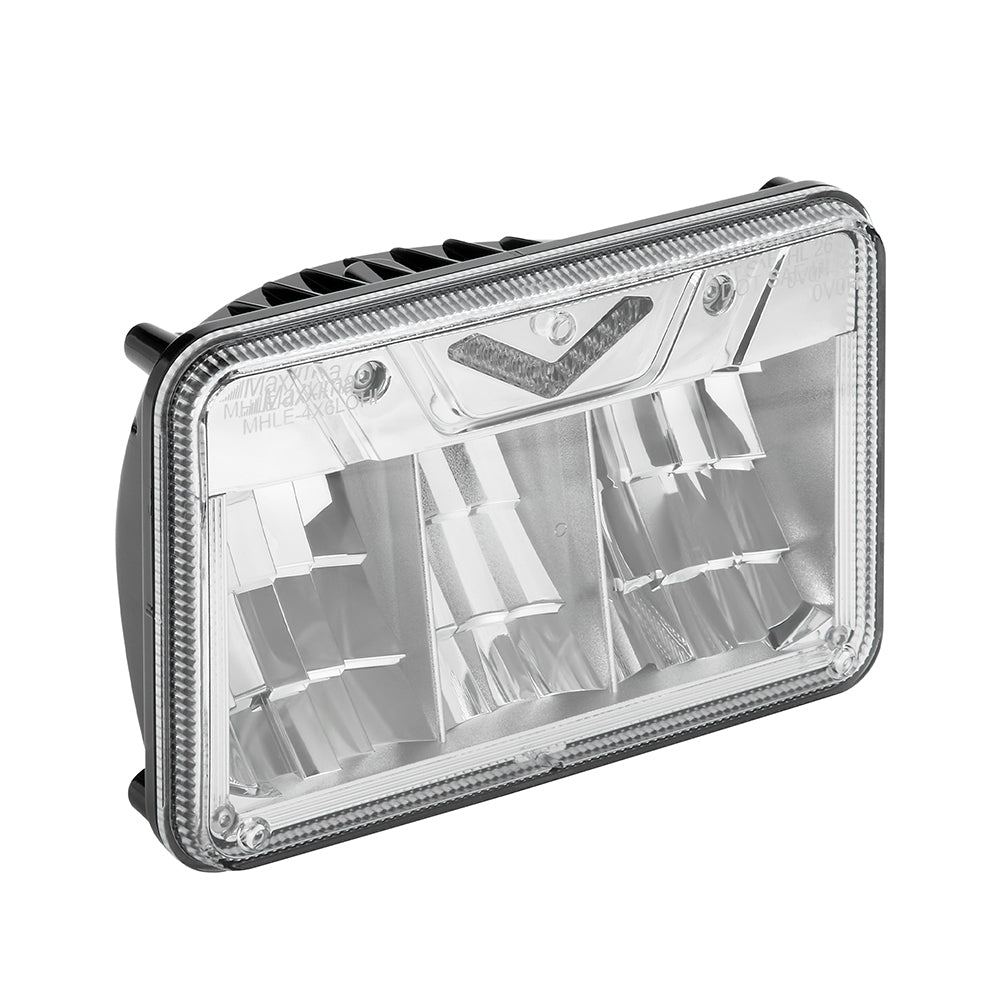

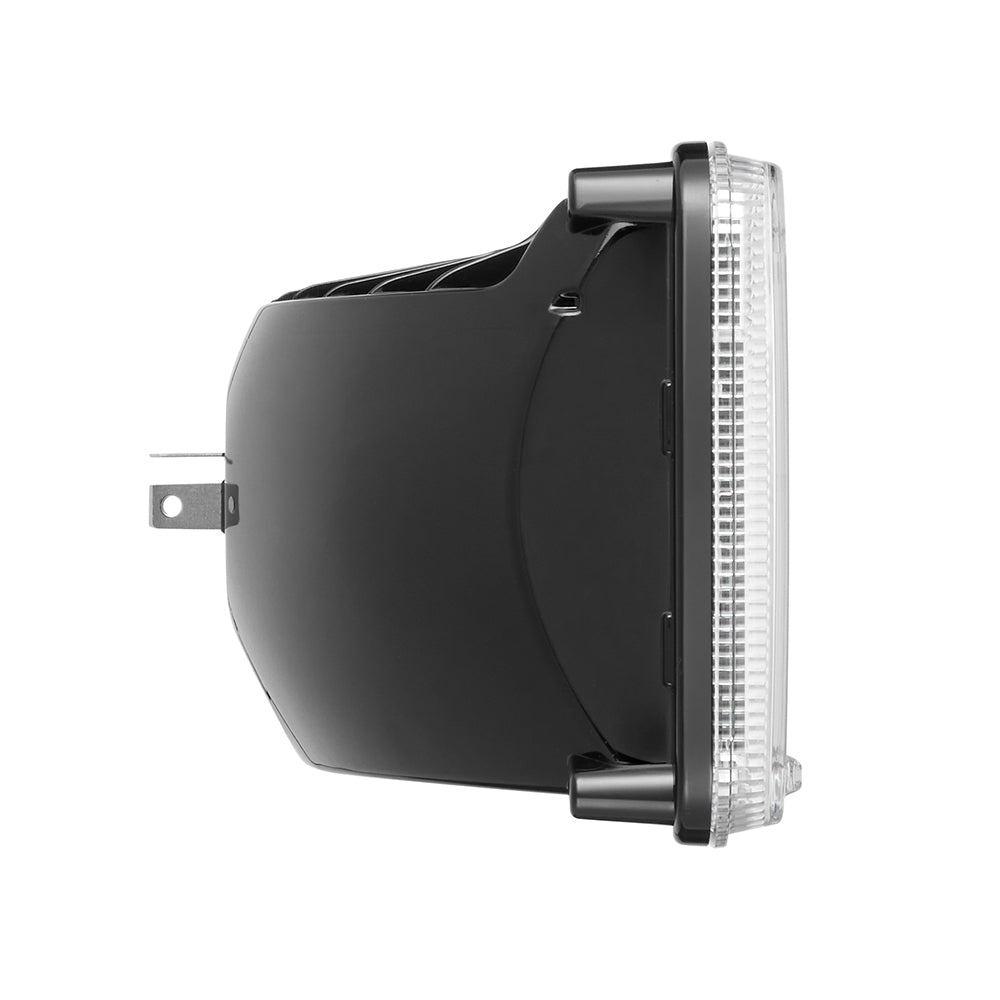

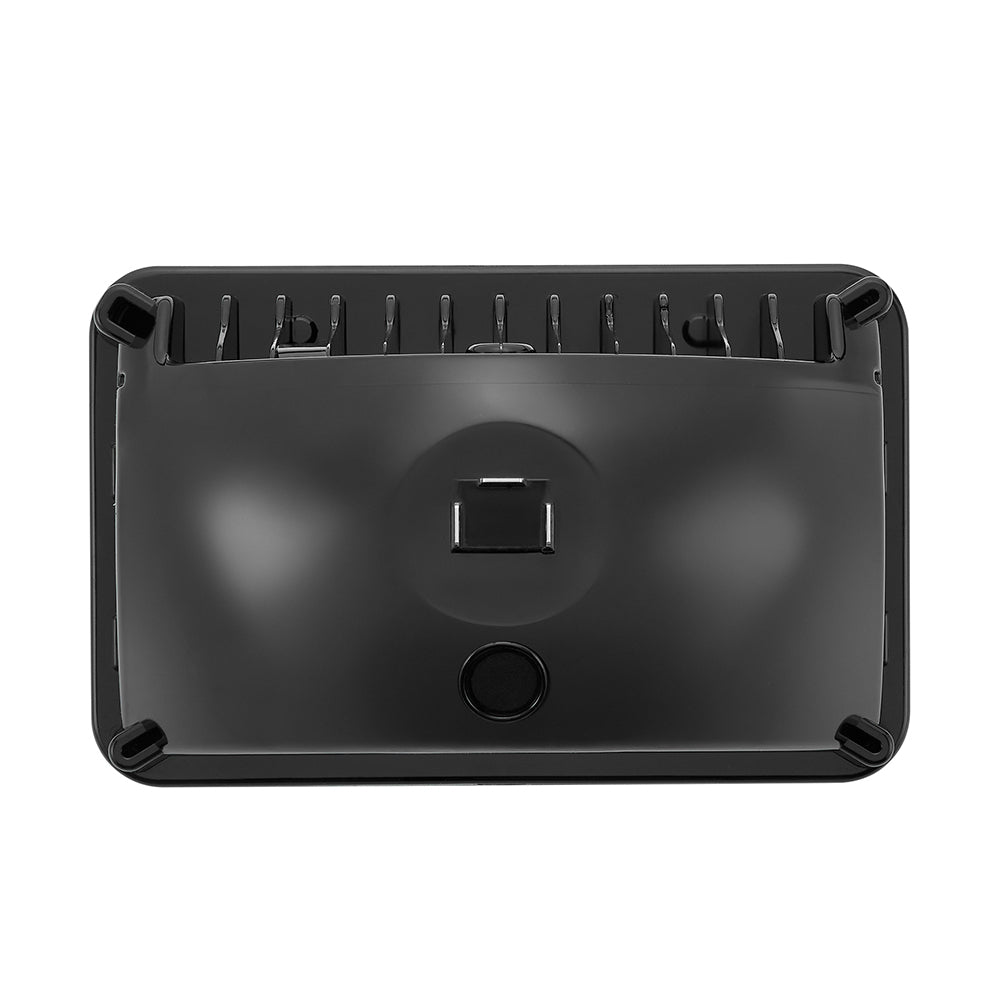

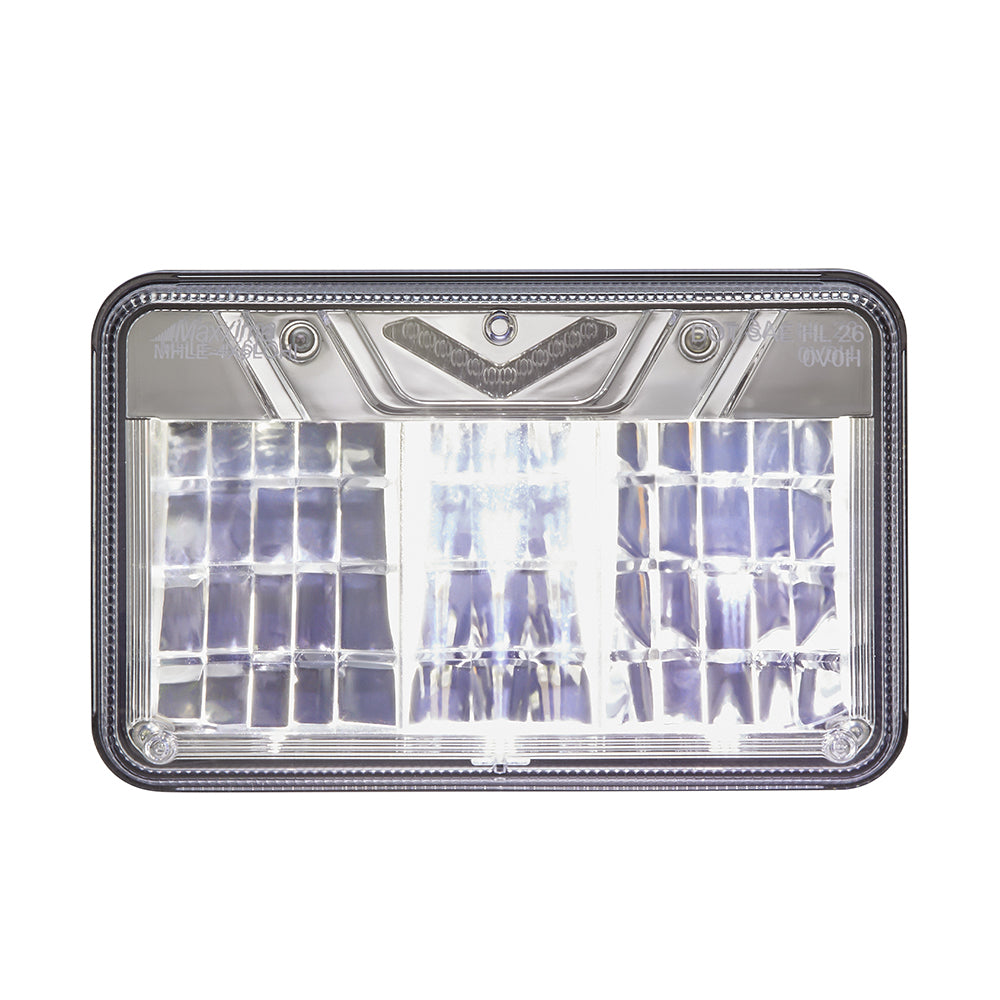

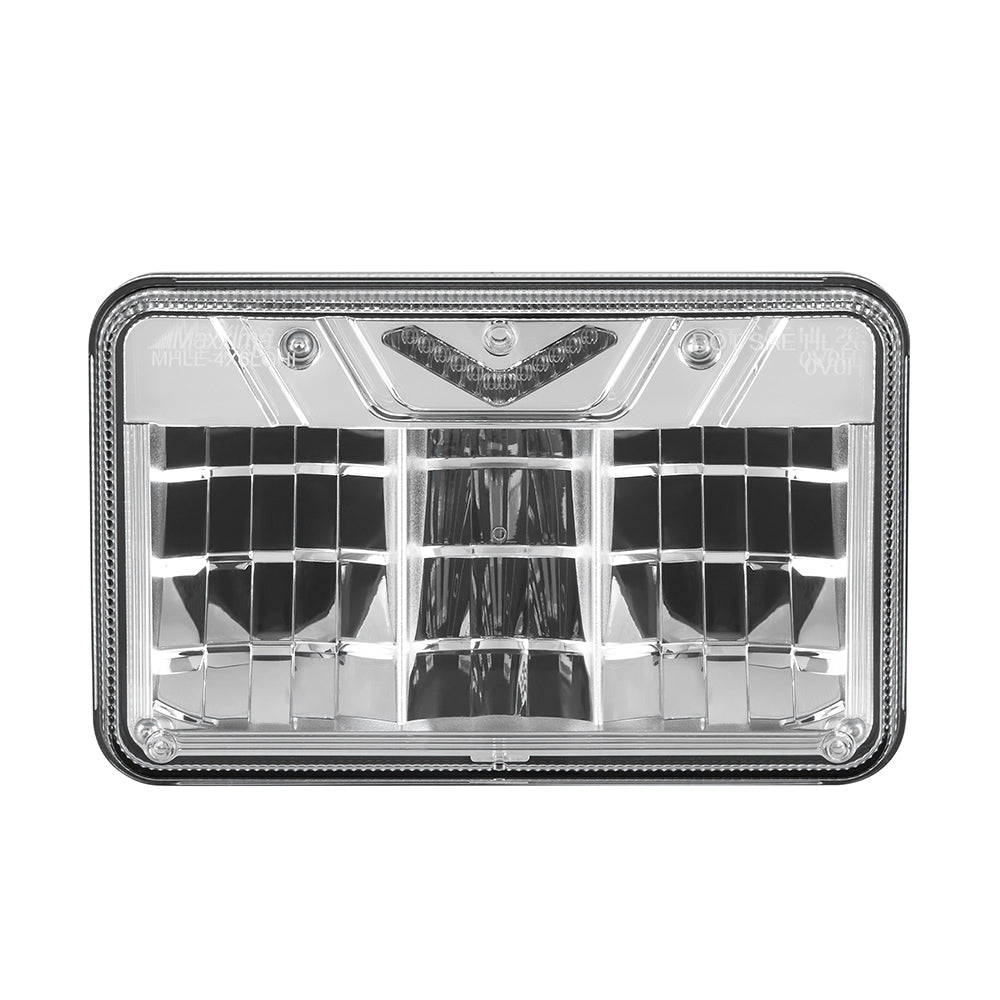

The MHLE-4X6LOHI is a 4” x 6” LED headlamp engineered to deliver both low beam and supplemental high beam functionality in a single, high-performance unit. Designed to replace the existing low beam in traditional 4-lamp systems, this combination lamp enhances forward visibility while maintaining compliance with DOT standards (UB5 / LB4M). Its advanced LED optics provide consistent, reliable illumination for demanding on-road and off-road applications, making it an ideal upgrade from conventional sealed beam headlights.
Constructed with a durable polycarbonate lens and housing, the MHLE-4X6LOHI is built to withstand harsh environments and long-term use. Maxxima’s MaxxShield hard coating with integrated UV protection helps preserve lens clarity and resist environmental wear over time. This lamp retrofits directly into ANSI #H4656 applications for easy installation and is also available in a heated lens version (MHLE-4X6LOHI-MH) for improved performance in cold weather conditions. Backed by a 3-year warranty, the MHLE-4X6LOHI delivers dependable lighting performance and durability for a wide range of vehicle applications.
SPECIFICATIONS:
- Voltage: 12/24VDC
- Amp Draw: 12V 0.4A LO / 0.7A HIGH
- Dimensions: 6.6” W x 4.2” H x 3.4” D
- Connector: H4, 3-Pin Male
- LEDs: 8
- Legal Heading: DOT SAE HL
- DOT/SAE: FMVSS108, J2650
FEATURES & BENEFITS:
- 4” x 6” Combination Low Beam + Supplemental High Beam
- Replaces Existing Low Beam in 4-Lamp System
- DOT Compliant to UB5 / LB4M
- Polycarbonate Lens & Housing
- MaxxShield Hard Coating with UV Protection
- Retrofits ANSI # H4656
- Also Available with Heated Lens (MHLE-4X6LOHI-MH)
- 3 Year Warranty
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, International MV, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, MV, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, MD, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
