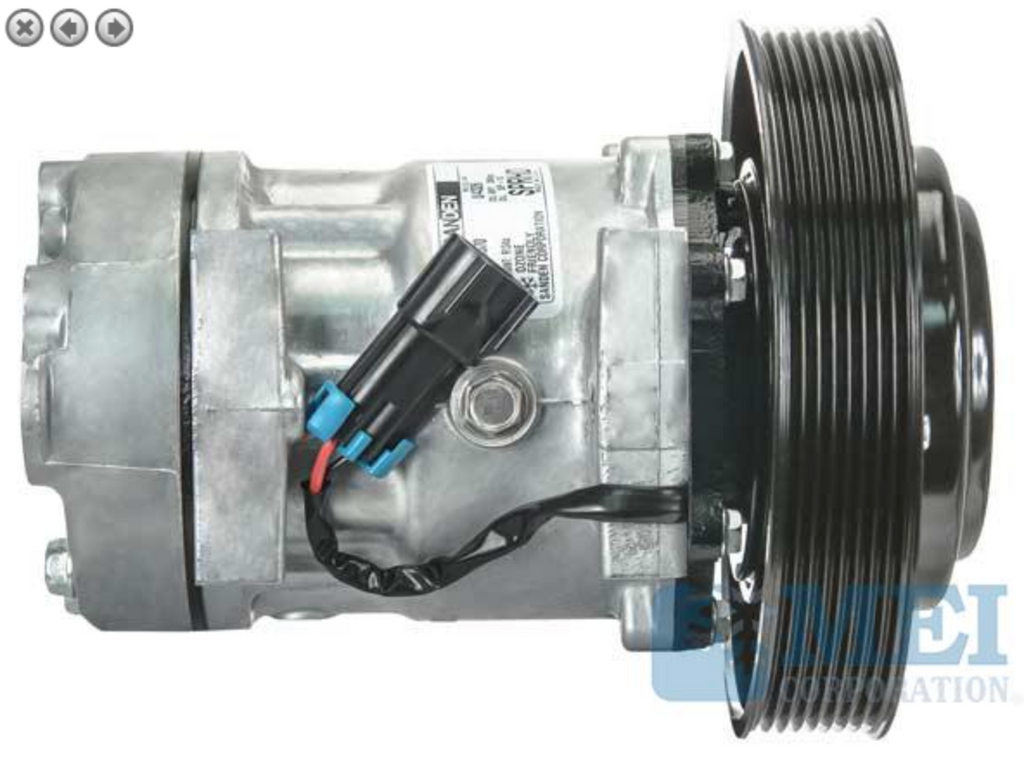

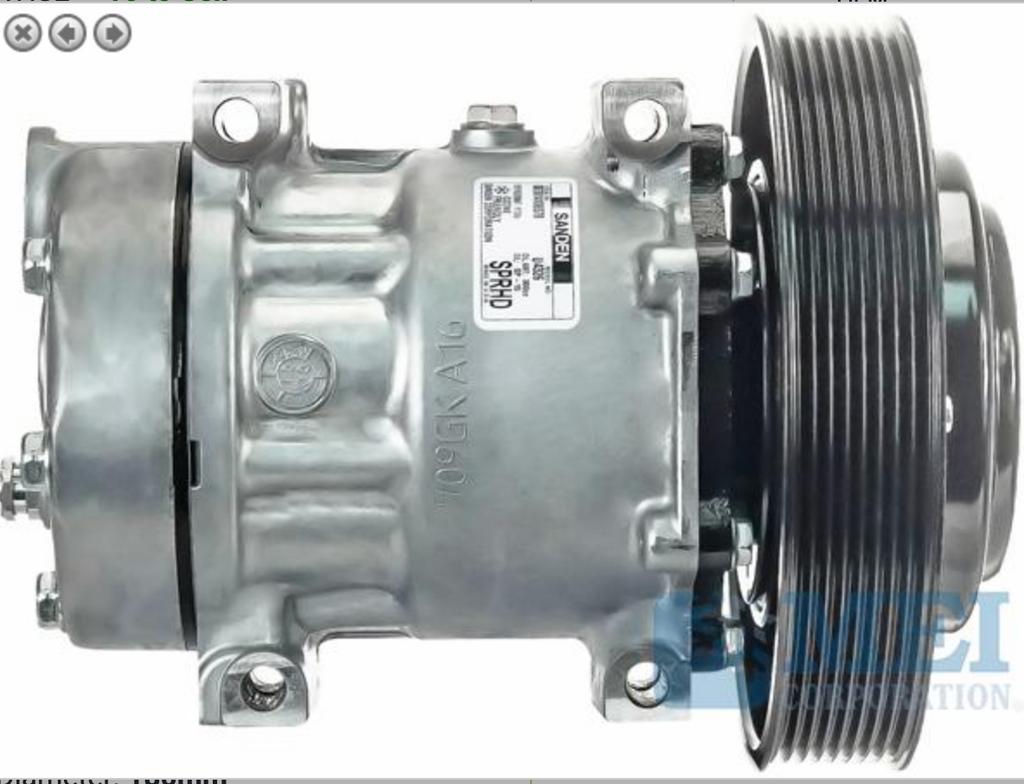

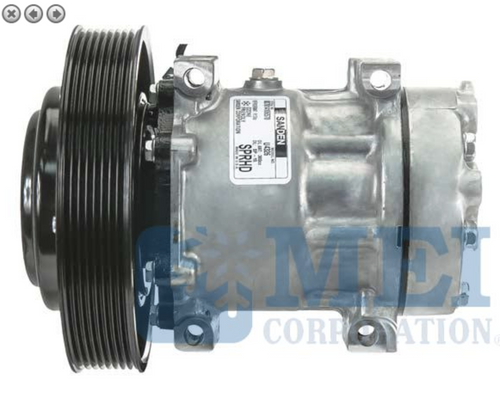

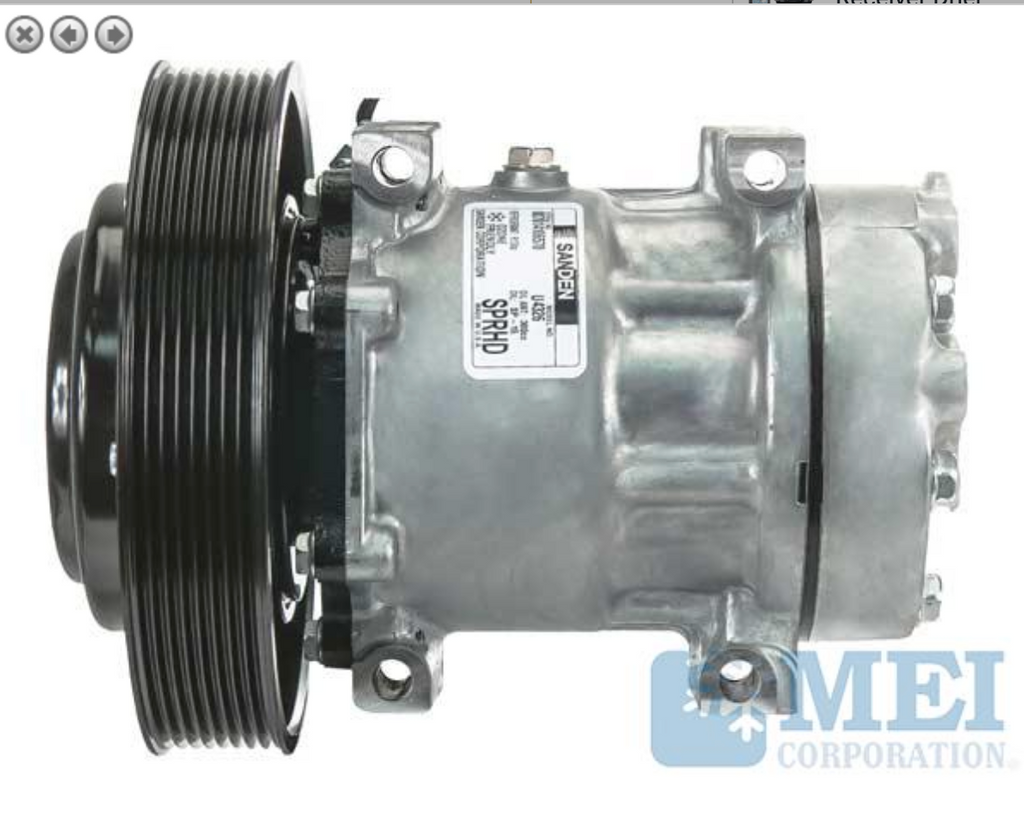

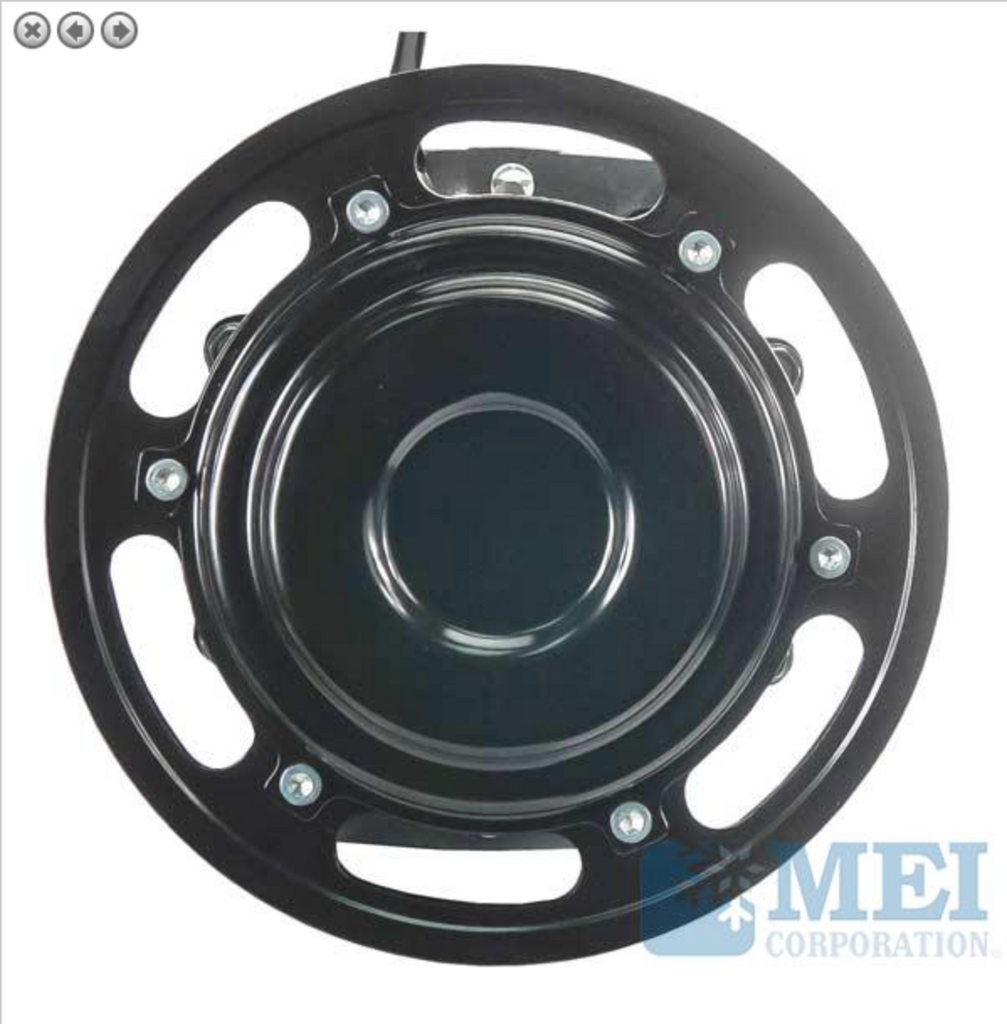

Sanden Compressor - Genuine OEM Grade FIts Mack and Volvo 12.8L L6 MP8
SKU: 03-1201
Sanden Compressor - Genuine OEM Grade FIts Mack and Volvo 12.8L L6 MP8
Make: Sanden
Manufacturer: Sanden
Manufacturer #: 4326
Application: Volvo Mack Trucks Fits Volvo
12.8L L6 MP8
Description: Sanden SHD Comp 8 gr 176mm
Additional Description: Super Heavy Duty -
OEM
Volts: 12V
Clutch Diameter: 180mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Fitting Port Position: Horizontal

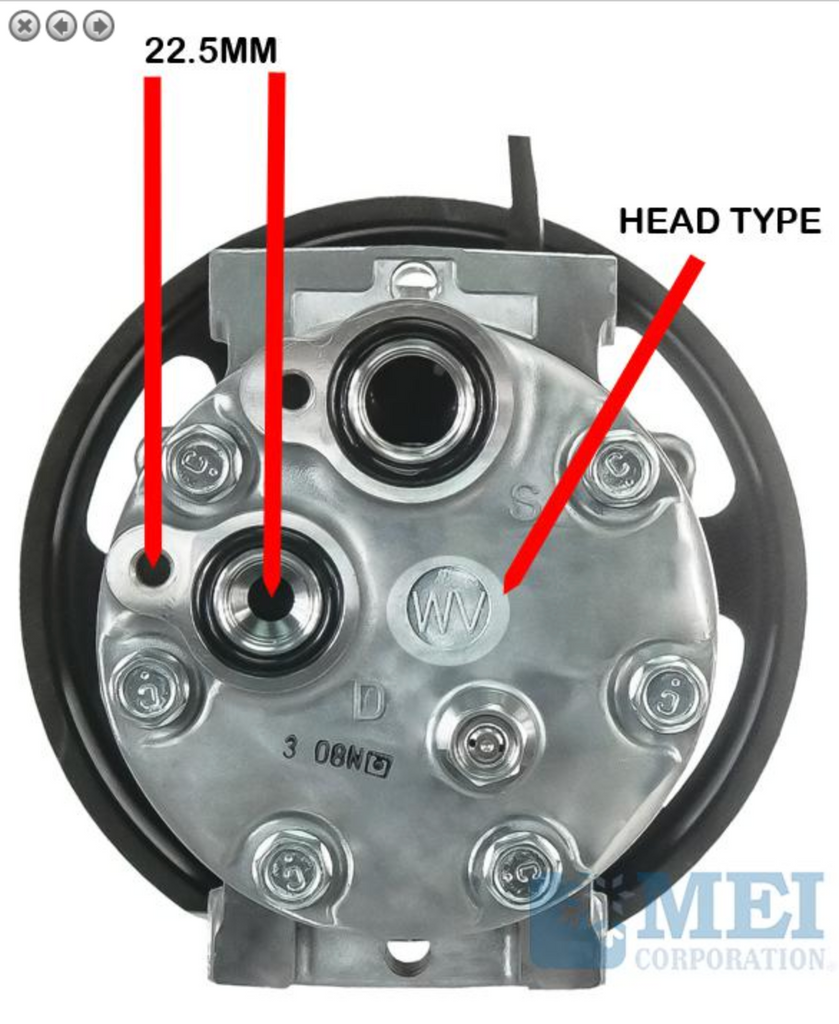

Fitting Style: Rear Pad O-ring, Volvo Off-Set Top Left, Suc over Disch Head Type: WV

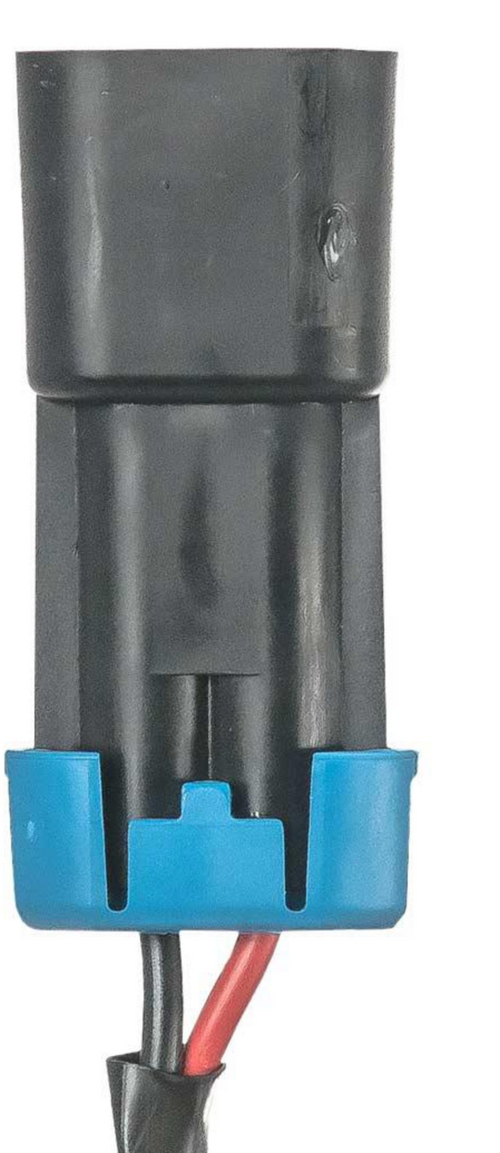

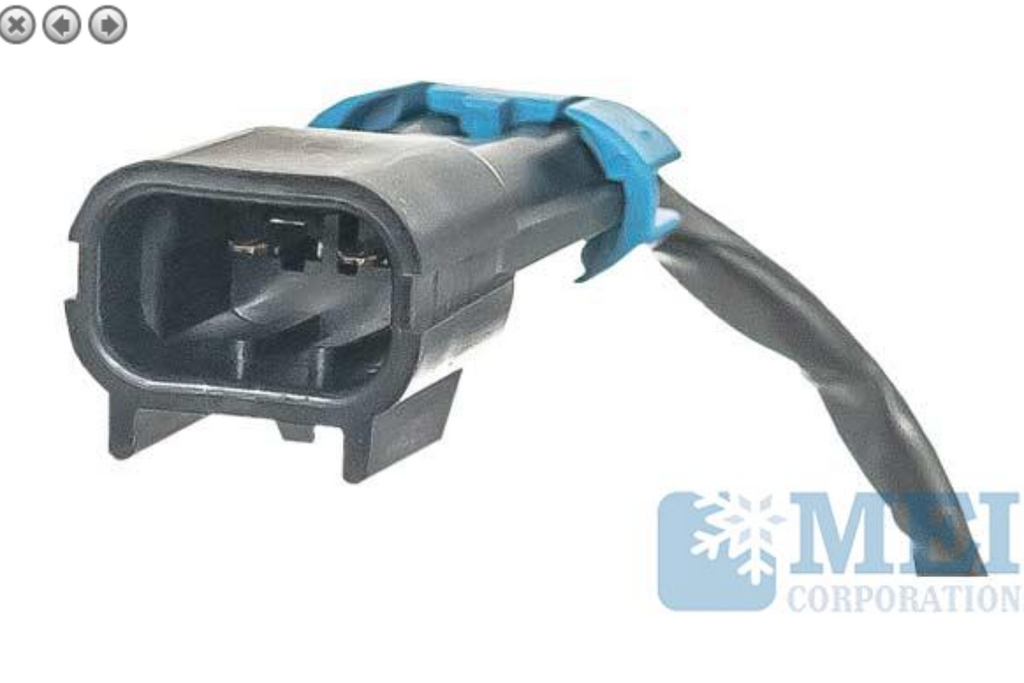

Wire Type: 2 Wire Female Packard
#15300002
Replacement Clutch Assy.: NSS

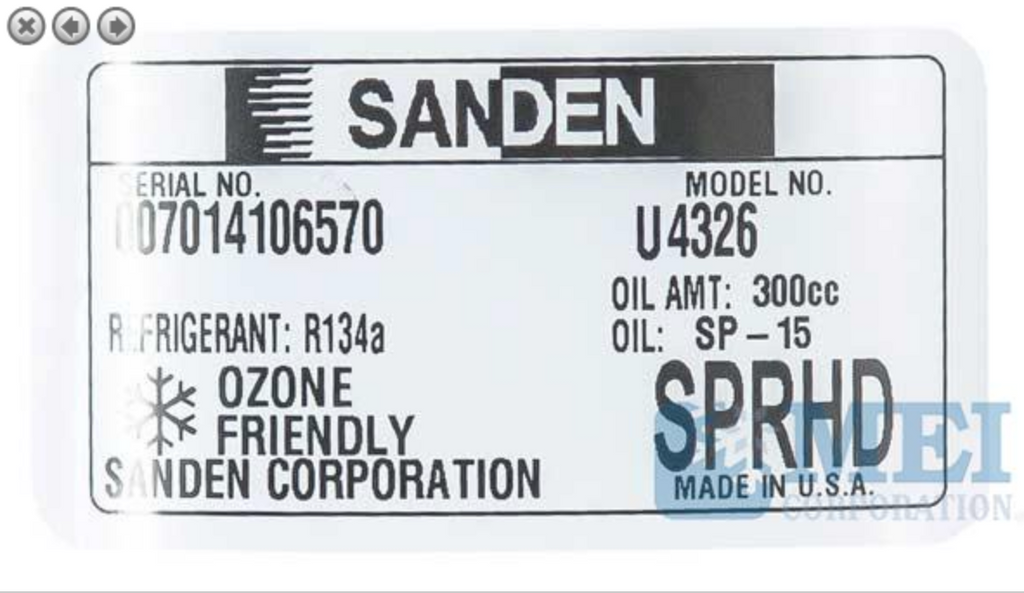

Model: 7H15SPRHD
Mounting Type: Direct Short
Oil Type: PAG100
Product Name: A/C Compressor w/clutch
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Diode Protection: w/diode
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, MD, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
