Maxxima Undercarriage Surface Mount Light, Amber Clear Lens, 13"
SKU: M84420YCL
Maxxima Undercarriage Surface Mount Light, Amber Clear Lens, 13"
Description
The M84420YCL 13" Amber LED Undercarriage Light delivers vibrant ground-effect and auxiliary lighting in a rugged, exterior-grade package. Featuring 42 high-output Amber LEDs behind a clear lens, this IP68-rated waterproof light provides a wide 120° beam pattern for consistent illumination beneath trucks, trailers, service bodies, off-road vehicles, and custom applications. The durable aluminum housing with nylon end caps is built to withstand harsh operating environments while maintaining a sleek, low-profile appearance.
Designed for easy installation with a 2-hole surface mount and 17" wire leads with bullet connectors, the M84420BCL combines dependable performance with low current draw. Available in Blue, Green, Red, and Amber, as well as a White Light version, it offers a versatile solution for accent, safety, and utility lighting needs. Backed by a 3-year warranty and packaged for retail display.
SPECIFICATIONS
- Voltage: 12.8VDC
- Amp Draw: 0.8A
- Dimensions: 13”L x 1.4”W x 1.4”D
- Mounting: 2 Hole Surface

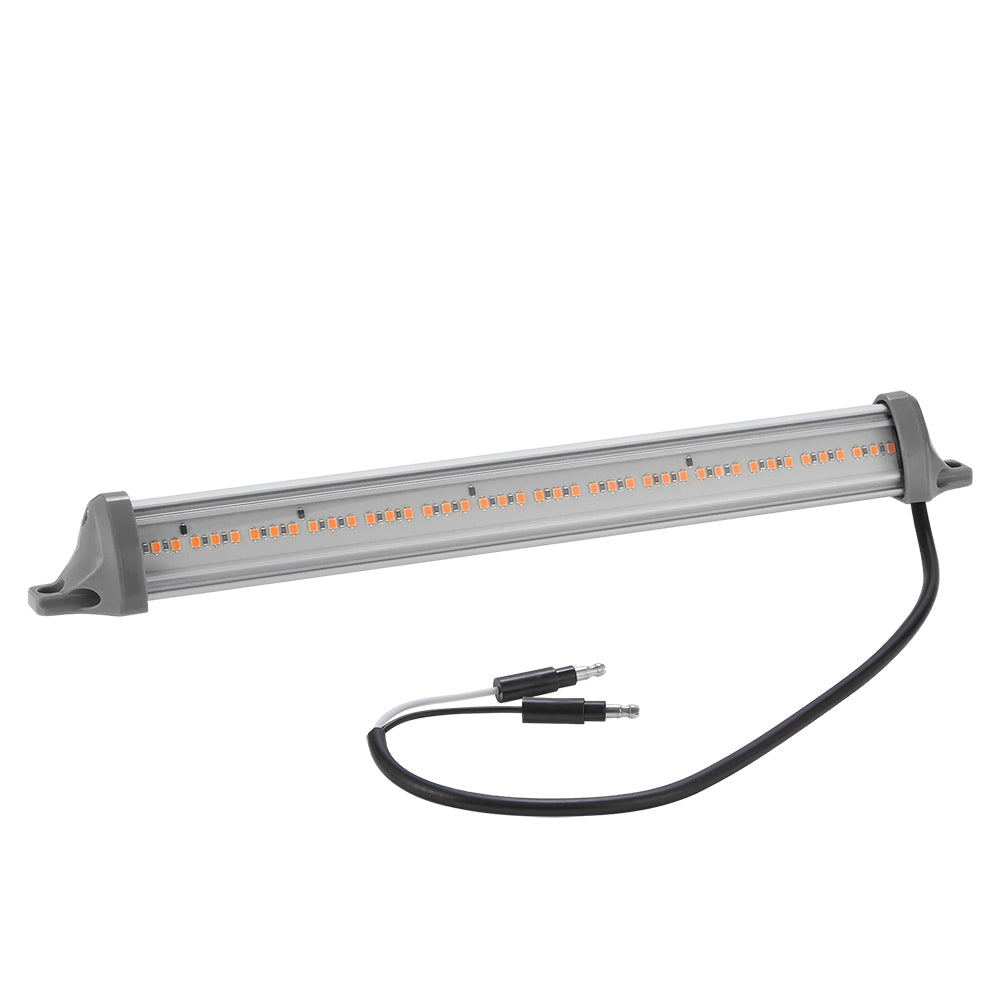

- Connector: 2 Jacketed Wires, .180 Bullets, 17”
- LEDs: 42
FEATURES & BENEFITS
- Exterior Grade, IP-68 Rated, Waterproof Undercarriage Light
- Available in 4 Colors: Blue, Green, Red, or Amber
- Ground Effect Light or Aux Light
- 42 LEDs, Clear Lens
- Aluminum Housing with Nylon End Caps
- 120-Degree Light Output
- Retail Packaging
- Also Available in White Light
- 3 Year Warranty
WARNING: Cancer, birth defects or other reproductive harm. www.p65warnings.ca.gov.
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, International MV, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, MV, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, MD, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
