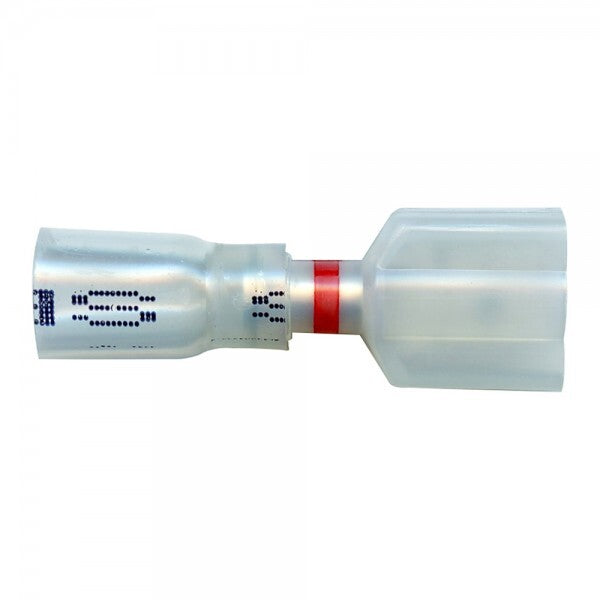

Grote Crystal Clear Heat Shrink Male Discon., 22-18 Ga, .250", Pk 15

SKU: 84-4436

Color: Clear w/Red Stripe
Connection Type: Male Disconnect
Operating Temperature: -55°C to 125°C (-67°F to 257°F)
Gauge: 22-18 GA
Functions: Heat Shrinkable
Pack Quantity: 15
Material: Cross-linked ionic polymer
Voltage: 600V
Stud or Tab Size: .250"
Shrink Ratio: Exceeds 2.5 to 1
Package Type: Clamshell
ROHS: Yes
VMRS: 053-007-002
Voltage Rating: 300 V
Feature: Adhesive-lined
Warranty: 1 Year
Color-coded stripes identify wire gauge size to be used with connector and indicate/guide where to position crimp nest to install properly
Funnel-entry copper ferrule inserted over brass terminal to provide strong mechanical termination
Tubing doesn’t insulate the nylon crimp surface where the connector is crimped, ensuring superior crimp performance

Freightliner	Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, M2, M2 106
Kenworth	C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990
Peterbilt	320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587
International	1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700
Volvo	VN, VN2, VNL, VNM, WIA & White GMC
Mack	CH, CHN, CV, CXN, Granite, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision

Grote Crystal Clear Heat Shrink Male Discon., 22-18 Ga, .250", Pk 15

SKU: 84-4436

$11.99

Ship This Item

Shipping fee is calculated during checkout

Available In-Store Available In-Store

Buy it at our Miami location

Please select a delivery method.

In Stock

Quantity

Color: Clear w/Red Stripe
Connection Type: Male Disconnect
Operating Temperature: -55°C to 125°C (-67°F to 257°F)
Gauge: 22-18 GA
Functions: Heat Shrinkable
Pack Quantity: 15
Material: Cross-linked ionic polymer
Voltage: 600V
Stud or Tab Size: .250"
Shrink Ratio: Exceeds 2.5 to 1
Package Type: Clamshell
ROHS: Yes
VMRS: 053-007-002
Voltage Rating: 300 V
Feature: Adhesive-lined
Warranty: 1 Year
Color-coded stripes identify wire gauge size to be used with connector and indicate/guide where to position crimp nest to install properly
Funnel-entry copper ferrule inserted over brass terminal to provide strong mechanical termination
Tubing doesn’t insulate the nylon crimp surface where the connector is crimped, ensuring superior crimp performance

Freightliner	Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, M2, M2 106
Kenworth	C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990
Peterbilt	320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587
International	1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700
Volvo	VN, VN2, VNL, VNM, WIA & White GMC
Mack	CH, CHN, CV, CXN, Granite, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision
