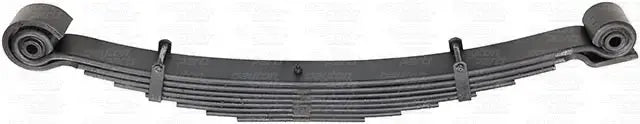

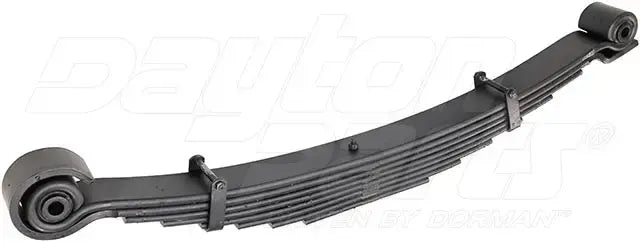

Suspension - Leaf Spring Fits HENDRICKSON
SKU: 55-1248
Suspension - Leaf Spring Fits HENDRICKSON
Properly functioning leaf springs hold the weight and payload of a vehicle or trailer and are essential to suspension performance and passenger comfort. Check the product attributes to select the right leaf spring for your application.
- Direct replacement - these leaf springs are designed to match the fit and function of the original leaf springs on specific vehicles or trailers
- Ideal solution - seamlessly replaces leaf springs damaged by overloading, collision, cracking or corrosion, or are due for replacement
- Durable construction - made from quality materials to strict specifications to ensure reliable performance and long service life
- Trustworthy quality - engineered, manufactured and supported by the premier aftermarket leaf spring provider in the USA
SpecificationsAxle Modification Needed | No
Axle Orientation | Front
Bushing Color | Black
Bushings Included | Yes
Center Hole | 1/2
Color | Black
End 1 Attachment Type | Berlin Eye
End 2 Attachment Type | Berlin Eye
Grading | 1/702 1/660 6/527
Helper Spring | No
LE End Type/Bushing No | Ber/RB-269
Leaf Quantity | 8
Leaf Spring Arch Length | 3.813 in
Leaf Width | 4 in
Length Axis 1 | 25 in
Length Axis 2 | 29 in
Load Rate | 9100 lb
Long End Bushing Type | Rubber
Long End Pin Diameter | 1 in
Material | Steel
Mounting Hardware Included | No
Number of Leaves | 8
Pack Thickness | 4.632 in
Package Contents | 1 Leaf Spring
Part Number | 55-1248
Part Type | Suspension - Leaf Spring
Safety Rating | 1
SE End Type/Bushing No | Ber/RB-269
Short End Bushing Type | Rubber
Short End Pin Diameter | 1 in
Spring Design | Eyes Both Ends
Spring Research Institute Number | 55-1248
Spring Type | Leaf Spring
Suspension Grade Type | Standard
Weight | 207.700000
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, MD, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
