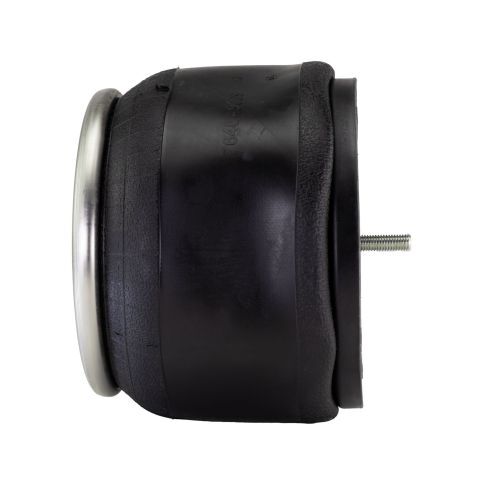

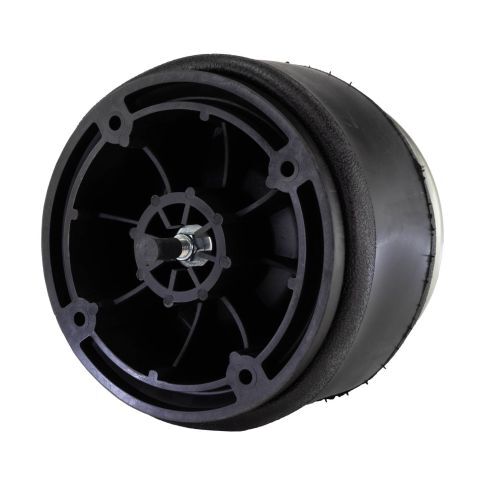

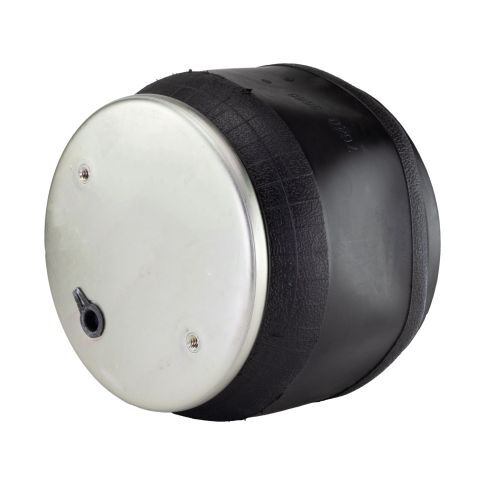

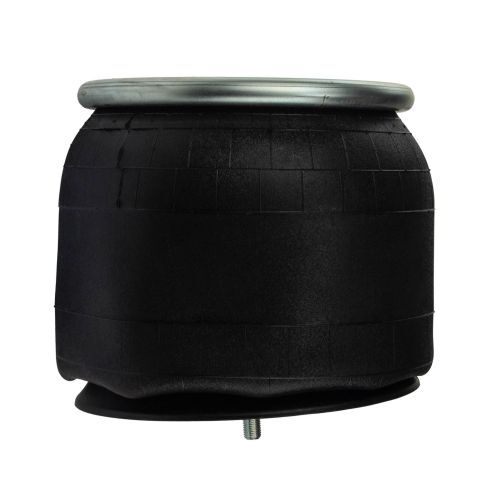

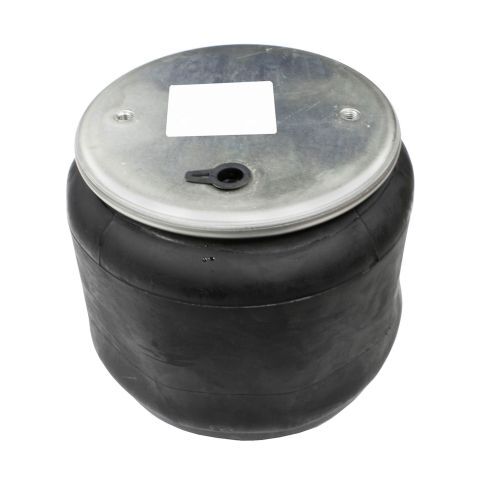

Rolling Lobe Air Spring with Plastic Base, Replaces Goodyear
SKU: US30-9069-01
Rolling Lobe Air Spring with Plastic Base, Replaces Goodyear
Out Of Stock
Rolling Lobe Air Spring with Plastic Base
UPC:
00698231884959
Air Spring Type:
Rolling Lobe
Base Plate Material:
Aluminum
Bottom Configuration:
2.25" C/C Inch
Bottom Plate Bolt Hole Quantity:
1
Bottom Plate Diameter:
9.53 Inch
Bottom Plate to Top Plate Mounting Alignment:
Parallel
Compressed Length:
7.5 Inch
Extended Length:
18 Inch
Extended Length:
21.1 Inch
Load Rating at 100 PSI:
7000 Pound
Load Rating at 80 PSI:
5570 Pound
Maximum Diameter:
10.12 Inch
UPC:
00698231884959
Air Spring Type:
Rolling Lobe
Base Plate Material:
Aluminum
Bottom Configuration:
2.25" C/C Inch
Bottom Plate Bolt Hole Quantity:
1
Bottom Plate Diameter:
9.53 Inch
Bottom Plate to Top Plate Mounting Alignment:
Parallel
Compressed Length:
7.5 Inch
Extended Length:
18 Inch
Extended Length:
21.1 Inch
Load Rating at 100 PSI:
7000 Pound
Load Rating at 80 PSI:
5570 Pound
Maximum Diameter:
10.12 Inch
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, International MV, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, MV, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, MD, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
